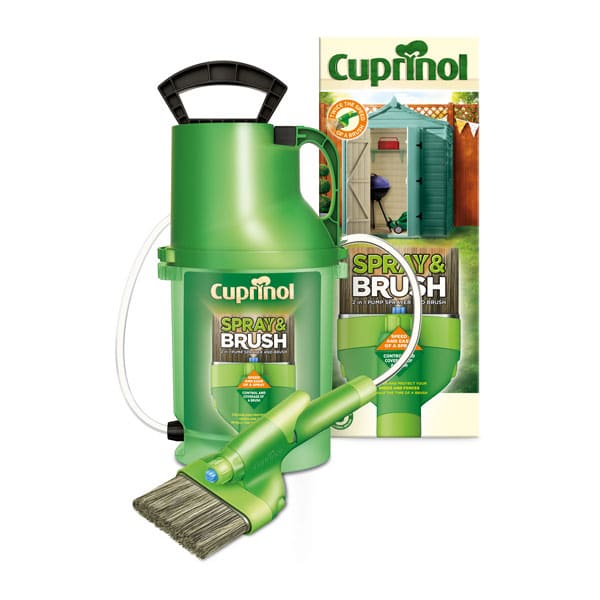

cuprinol spray & brush pump sprayer

Paint your sheds and fences in a fraction of the time with the Cuprinol Spray and Brush. This unique 2 in 1 innovation gives the speed and ease of a sprayer combined with the control and precision of a brush – for the perfect finish.

Features

• 2 in 1 pump sprayer and brush
• Twice the speed of a brush
• Reusable and replaceable parts
• Parts will dismantle for easy cleaning with water
• 3 year guarantee (excluding brush)

Prepare

Ensure that the nozzle, hose and reservoir are cleaned thoroughly before and after use. This is to ensure that there is no remaining paint or stain from the previous project left inside.

Apply

On Initial Use:

The majority of the components are assembled however you will need to clip the brush (1088) into the handset and attach the hose (1090) SECURELY to the sprayer tank to avoid leaks during use. Ensure all fittings are tight prior to use but do not use a spanner or similar to tighten. After assembly test for proper delivery and tightness by filling with water, pressurising and doing a test spray. Remove centre handle/pump (921) from the sprayer by turning it anticlockwise (in the locked position).

On Reuse And After Storage:

Check all component parts are free of excessive wear and tear, worn parts must not be used. Check for damage to unit and attachments, if damaged do not use. All repairs to be carried out by an authorized service agent. Check that the pressure release valve (269) is working /not stuck / blocked. Use only authorised replacement components.

CHECK SPRAYABLE TREATMENT FOR STIRRING INSTRUCTIONS BEFORE USE

Remove the lid and pour contents into sprayer. Please note that the sprayer is designed to hold up to 4 litres of sprayable product. When refilling use the 4 litre indicator (printed on the outside of the sprayer) as a guide to ensure the sprayer is not filling.

Replacing Pump, Closing Tightly:

Wipe any liquid from the screw thread and replace pump by turning in a clockwise direction until it can be tightened no further. Depress and 1/4 turn the handle (407) anti clockwise until it is in the unlocked position for pumping.

Pumping:

Place the sprayer on a firm, flat surface. Pressurise the sprayer by pumping the handle up and down fully with two hands. Make sure that fingers cannot be trapped between the handle and the top of the tank. Pump approx. 15-20 times if vessel is filled to the 4L mark, and 25-30 times if half-filled to 2L for perfect spray pressure. You will know once you have reached the optimum pressure for spraying, the valve (269) will release some air and the black valve handle will rise to reveal about 5 mm of the red indicator below.

Spraying & Brushing:

For best results spray main area evenly from a distance of approx. 20-30cm for ideal coverage.
Using a slow, sweeping motion, spray horizontally. Use the brush to brush into edges and go over the panels for the perfect finish. As with any sprayer it may take a couple of minutes to perfect your technique. Begin slowly and increase the pace as you get used to spraying. Take care not to spray too quickly as this may result in an uneven finish. Similarly, spraying too slowly will result in excess product being applied causing runs. Should this happen simply brush into the wood. The Cuprinol Spray & Brush has a very controlled spray pattern, however, as with any spray product a limited amount of overspray will be created. This can be minimised by avoiding spraying in windy conditions and by using cardboard or plastic as a shield. Any overspray should be cleaned up with water and household detergent if necessary. Excessive spillage on plants should be rinsed off before drying. Re-pressurise to maximum pressure when the spray pattern “tails off” following step 4. The frequency of repressurisation will depend on the amount of liquid in the container. In the unlikely event that the nozzle (665 and 666) becomes partially blocked, release the pressure and unscrew the nozzle. Remove both nozzle components (665 and 666) and filter (664) and wash with water until all traces of fluid are removed. Check to see if the nozzle holes are clear and reassemble.

Releasing the pressure:

BEFORE REFILLING OR AFTER USE, ENSURE ALL PRESSURE IS RELEASED VIA THE PRESSURE RELEASE VALVE (269) BEFORE OPENING THE SPRAYER. DO NOT LEAVE SPRAYER PRESSURISED WHEN NOT IN USE.

CAUTION: DO NOT TAMPER WITH THE PRESSURE RELEASE VALVE (269) AT ANY STAGE.
